ShockDrain 580 Diamond P.A.D.

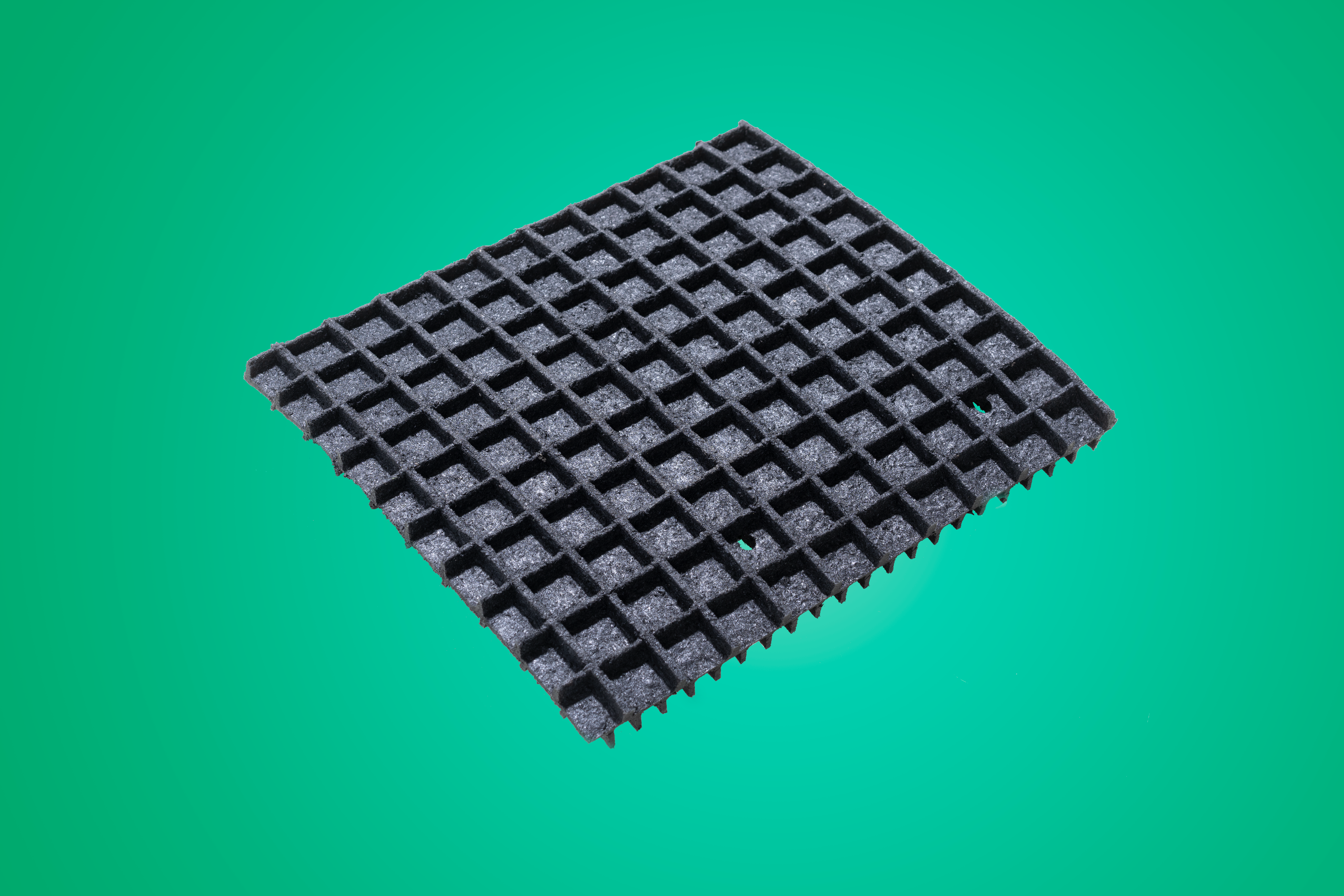

EnPlast_8

ShockDrain

580 Diamond P.A.D.

ShockDrain 580 Diamond P.A.D. is a shock pad for artificial turf fields, engineered from Thermoplastic Elastomers Polyolefin Composites (TEPC) — a 100% recyclable material that meets the most stringent regulatory standards.

Designed for both new-generation sports field construction and troubled installations, our shock pads are an ideal solution when an existing pad has failed or when a weak sub-base needs support.

Get a Quote

Product Overview

ShockDrain 580 Diamond P.A.D. is built with the demands of real field conditions in mind. From installation day through years of play, every design element works to protect the field, the turf, and the athletes on it.

Unlike standard shock pads, ShockDrain 580 features a honeycomb structure that delivers exceptional sub-surface stability — sturdy enough to support construction traffic directly on top of the pad during installation. Expansion and contraction joints absorb pad movement across varying heat cycles, while patented cooling chambers on the surface help lower field surface temperatures. Pre-applied pressure sensitive adhesive secures lateral panel junctions, and inlaid panel junctions ensure transparent seams with no lines visible through the turf. As an artificial turf shock pad designed for long-term performance, ShockDrain 580 also incorporates flex control ridges to minimize turf abrasion and wrinkling during infill operations, and horizontal ridges that improve interface friction between the turf and pad.

Benefits of ShockDrain 580 Diamond P.A.D.

  • High Transmissivity

  • No Volatile Organic Compound (VOC) Release

  • Excellent Impact Attenuation & Force Reduction

  • Moisture Barrier or Drain-Through Profile

  • Quick Installation

  • Recyclable and derived form recycled material

  • Standard Field Requires Only 2 Trucks (90k Sq. ft.)

  • Made In the USA: Meets Buy-America Requirements

ShockDrain 580 is engineered for performance, practicality, and sustainability, delivering reliable results from the first truck on site to years of play down the road.

En-Plast Social Posts (2)

Resources ShockDrain 580 Diamond P.A.D.

Get more information about our shock pads.

Hydraulic Properties
  • Transmissivity (m2 /sec): 120
  • STD Infiltration Rate (Perforated) in/hr: 140

Shock-Absorbing Properties

  • Impact Attenuation (Gmax): 90
  • HIC: 1.3

Chemical Properties

  • Polycyclic Aromatic Hydrocarbon: No Detectable Level / No VOC
  • Common Metals: No Dispersion Above Limit / No SVOC’s
  • California Code Title 22: Certified
  • Bacteria and Fungal Growth: Resiliant

Material Properties

  • Composition (composite): Thermoset Elastomer, Polyolefin
  • Composite Ballast lbs/ft2 (kg/m2 ): 1
  • Nominal Thickness mils (mm): 580 (15)
  • Thermal and Humid Aging (%): <1%
  • Coefficient of Linear Thermal Expansion (in/ft): 0.003
Download

Frequently Asked Questions

ShockDrain 580 Diamond P.A.D. is an American-made shock pad for artificial turf fields, engineered from Thermoplastic Elastomers Polyolefin Composites (TEPC). It's designed to deliver superior impact attenuation and force reduction beneath synthetic turf, protecting both athletes and the field itself across new construction and replacement applications.

 If your current drainage base has failed or your sub-base is no longer structurally sound, ShockDrain 580 is an ideal replacement solution. It can perform on weak sub-bases and be deployed after compacting to a 95% standard proctor.

ShockDrain 580 is built for real field conditions. Expansion and contraction joints absorb pad movement across varying heat cycles, while patented cooling chambers help lower field surface temperatures. Its honeycomb structure provides sub-surface stability strong enough to support construction traffic during installation.

ShockDrain 580 meets rigorous impact attenuation benchmarks with a Gmax of 90 and HIC of 1.3, making it well-suited for competitive and recreational synthetic turf fields where athlete safety and field performance are top priorities.
